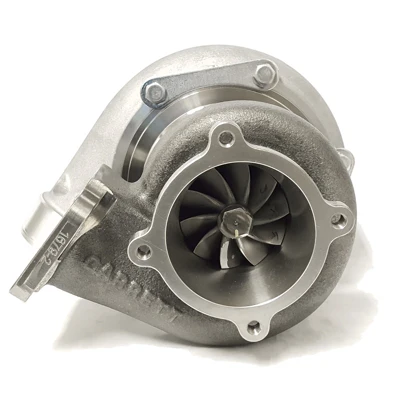

Turbocharger, Gen2 GTX3584RS w/ T3 UND GT4BOLT .82 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J36

Product Description:

Garrett Gen2 GTX3584RS with .82 A/R T3 undivided GT4BOLT exit turbine housing and hose connection compressor housing. Compact package capable of 1,000 HP.

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow "RS" blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Compact package capable of 1,000 HP

Product Specifications:

• Compressor Wheel Inducer: 67 mm
• Compressor Wheel Exducer: 84 mm
• Compressor Wheel Trim: 64
• Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
• Turbine Wheel Inducer: 68 mm
• Turbine Wheel Exducer: 62 mm
• Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085  (FLS-013 -mild steel)

Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:
