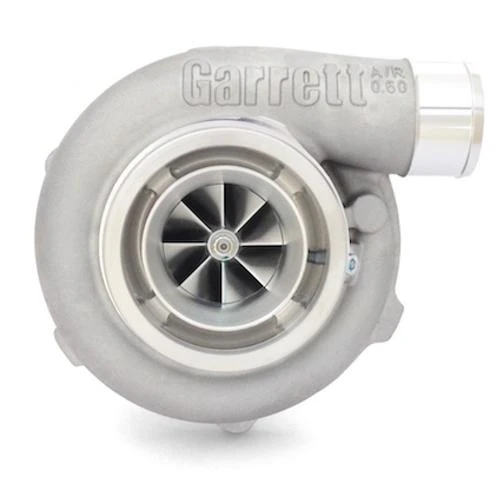

GEN2 Garrett GTX3071R Turbo with .82 A/R T3 Internal W/G Turbine Housing w/ “GT” 5 Bolt Exit GRT-TBO-773

PRODUCT DESCRIPTION:
Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Inlet, Internal Wastegate Design, and "GT" 5 Bolt Outlet, .82 A/R Turbine Housing (Wastegate actuator and bracket sold separately). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031



T3 Inlet Flange (for Turbo Manifold): Product Code:FLS-038

T3 Inlet Gasket: Product Code:GSK-005

5 Bolt "GT" Outlet Flange (for Downpipe): Product Code:FLS-075

5 Bolt "GT" Outlet Gasket: Product Code:GSK-075



Wastegate Actuator "GT28RS Style" 12 to 14PSI: Product Code:WGT-025

Actuator Bracket: Product Code:WGT-065

Actuator Rod End Clip: Product Code:WGT-035

Actuator Rod Extension Kit: Product Code:FTG-032

 NOTE: Alternate coolant and oil fittings and flanges and wastegate actuators are available.
