Supercore, Garrett, Gen2 GTX3584RS, P/N: 846098-5001S, HOSE CONNECTION GRT-TBO-M39
HomeStore

Supercore, Garrett, Gen2 GTX3584RS, P/N: 846098-5001S, HOSE CONNECTION GRT-TBO-M39

Supercore, Garrett, Gen2 GTX3584RS, P/N: 846098-5001S, HOSE CONNECTION GRT-TBO-M39

$2,543.92
Supercore, Garrett, Gen2 GTX3584RS, P/N: 846098-5001S, HOSE CONNECTION GRT-TBO-M39—
$2,543.92

The Story

PRODUCT DESCRIPTION:

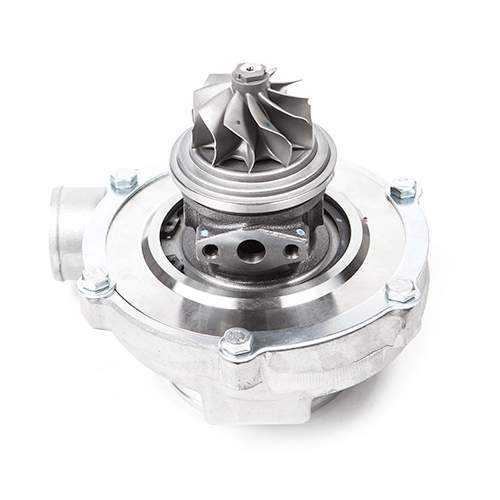

    Garrett GEN2 GTX3584RS dual ball bearing SuperCore (P/N: 846098-5001S) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). HOSE CONNECTION compressor housing. Advanced GEN2 billet compressor wheel capable of 1000HP!
PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67 mm
  • Compressor Wheel Exducer: 84 mm
  • Compressor Wheel Trim: 64
  • Turbine Wheel Inducer: 68 mm
  • Turbine Wheel Exducer: 62 mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

    •

    NOTE: Alternate coolant and oil fittings are available.



    COMPRESSOR & TURBINE MAPS:

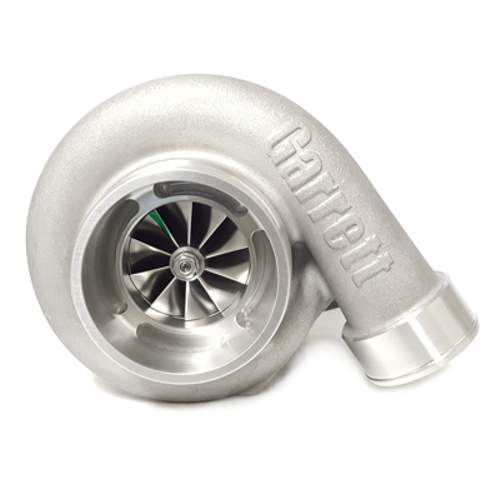

    Supercore, Garrett, Gen2 GTX3584RS, P/N: 846098-5001S, HOSE CONNECTION GRT-TBO-M39 - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    PRODUCT DESCRIPTION:
      Garrett GEN2 GTX3584RS dual ball bearing SuperCore (P/N: 846098-5001S) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). HOSE CONNECTION compressor housing. Advanced GEN2 billet compressor wheel capable of 1000HP!
    PRODUCT FEATURES:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    PRODUCT SPECIFICATIONS:
    • Compressor Wheel Inducer: 67 mm
    • Compressor Wheel Exducer: 84 mm
    • Compressor Wheel Trim: 64
    • Turbine Wheel Inducer: 68 mm
    • Turbine Wheel Exducer: 62 mm
    • Turbine Wheel Trim: 84

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

    •

    NOTE: Alternate coolant and oil fittings are available.



    COMPRESSOR & TURBINE MAPS:
