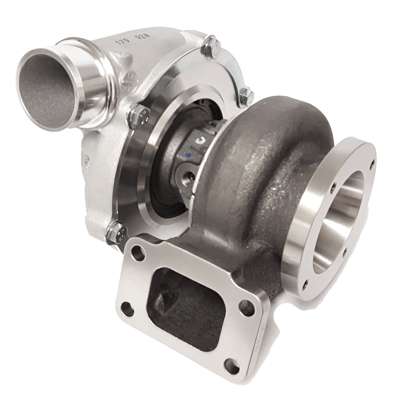

Gen2 GTX3076R DBB turbo w/ .82 A/R T3 Tbn Hsg "GT 4BOLT 3" conical exit GRT-TBO-B68

Gen2 GTX3076R DBB turbo w/ .82 A/R T3 Tbn Hsg "GT 4BOLT 3" conical exit GRT-TBO-B68

$720.45

Original: $2,401.51

-70%
Gen2 GTX3076R DBB turbo w/ .82 A/R T3 Tbn Hsg "GT 4BOLT 3" conical exit GRT-TBO-B68—

$2,401.51

$720.45

The Story

Product Description:

Garrett GEN2 GTX3076R dual ball bearing turbocharger with .82 A/R T3 turbine housing and "GT 4BOLT 3" conical exit.

Advanced GEN2 billet compressor wheel capable of 750HP!

Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 58 mm
  • Compressor Wheel Exducer: 76 mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60 mm
  • Turbine Wheel Exducer: 55 mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
    •
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085
  • Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:

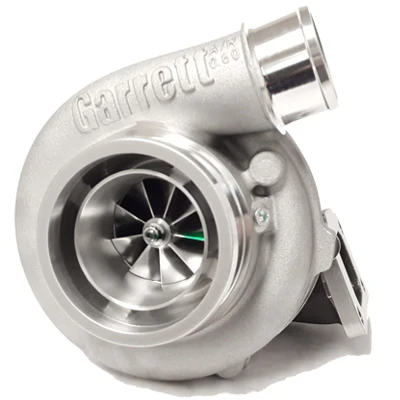

    Gen2 GTX3076R DBB turbo w/ .82 A/R T3 Tbn Hsg "GT 4BOLT 3" conical exit GRT-TBO-B68 - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

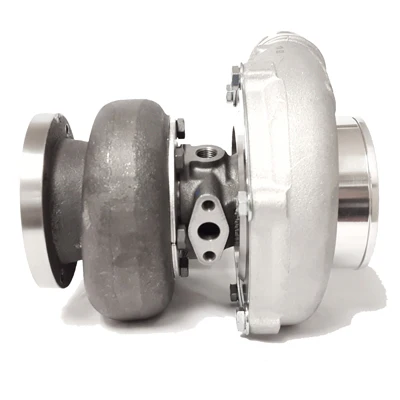

    Gen2 GTX3076R DBB turbo w/ .82 A/R T3 Tbn Hsg "GT 4BOLT 3" conical exit GRT-TBO-B68 - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

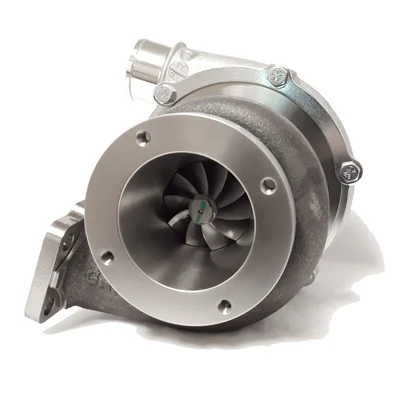

    Gen2 GTX3076R DBB turbo w/ .82 A/R T3 Tbn Hsg "GT 4BOLT 3" conical exit GRT-TBO-B68 - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    Product Description:

    Garrett GEN2 GTX3076R dual ball bearing turbocharger with .82 A/R T3 turbine housing and "GT 4BOLT 3" conical exit.

    Advanced GEN2 billet compressor wheel capable of 750HP!

    Product Features:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    Product Specifications:
    • Compressor Wheel Inducer: 58 mm
    • Compressor Wheel Exducer: 76 mm
    • Compressor Wheel Trim: 58
    • Compressor Housing A/R: 0.60
    • Turbine Wheel Inducer: 60 mm
    • Turbine Wheel Exducer: 55 mm
    • Turbine Wheel Trim: 84

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
    •
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085
  • Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
