Gen2 GTX3071R DBB turbo w/ T3 Undivided .82 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-994
HomeStore

Gen2 GTX3071R DBB turbo w/ T3 Undivided .82 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-994

Gen2 GTX3071R DBB turbo w/ T3 Undivided .82 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-994

$709.12

Original: $2,363.73

-70%
Gen2 GTX3071R DBB turbo w/ T3 Undivided .82 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-994—

$2,363.73

$709.12

The Story

Product Description:
    Garrett GEN2 GTX3071R dual ball bearing turbocharger with T31 inlet and welded 81mm GTVB in the .82 A/R Turbine Housing. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • 3" GT V-Band Outlet Flange (for Downpipe): FLS-246
  • Matching V-Band Outlet Clamp: CLA-048

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:


    Gen2 GTX3071R DBB turbo w/ T3 Undivided .82 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-994 - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

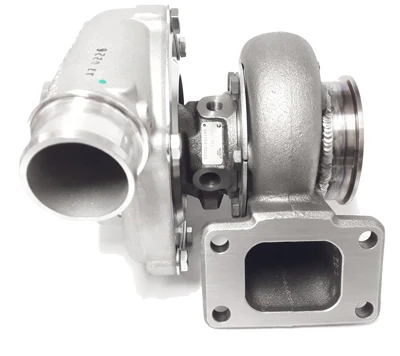

    Gen2 GTX3071R DBB turbo w/ T3 Undivided .82 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-994 - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

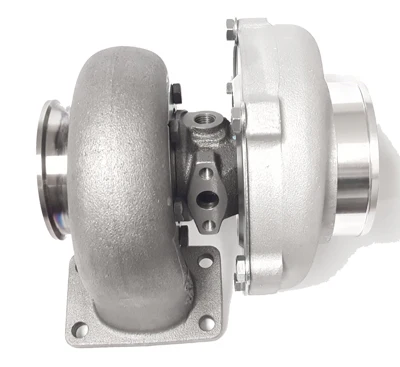

    Gen2 GTX3071R DBB turbo w/ T3 Undivided .82 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-994 - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    Product Description:
      Garrett GEN2 GTX3071R dual ball bearing turbocharger with T31 inlet and welded 81mm GTVB in the .82 A/R Turbine Housing. Advanced GEN2 billet compressor wheel capable of 650HP!
    Product Features:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    Product Specifications:
    • Compressor Wheel Inducer: 54mm
    • Compressor Wheel Exducer: 71mm
    • Compressor Wheel Trim: 58
    • Compressor Housing A/R: 0.60
    • Turbine Wheel Inducer: 60mm
    • Turbine Wheel Exducer: 55mm
    • Turbine Wheel Trim: 84

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • 3" GT V-Band Outlet Flange (for Downpipe): FLS-246
  • Matching V-Band Outlet Clamp: CLA-048

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
