The Story

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Inlet, V-Band (T31 Narrow) Outlet, .63 A/R Turbine Housing (ATP-HSG-041). Advanced GEN2 billet compressor wheel capable of 650HP!


PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

    •

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • V-Band "T31" Narrow Outlet Flange (for Downpipe): FLS-099
  • V-Band Outlet Clamp: CLA-012

    •  NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:

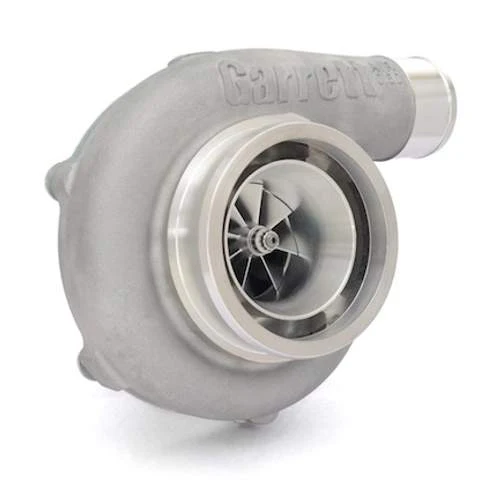

    GEN2 Garrett GTX3071R Turbo with .63 A/R T3 Turbine Housing w/ "T31" Narrow V-BAND exit GRT-TBO-767 - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

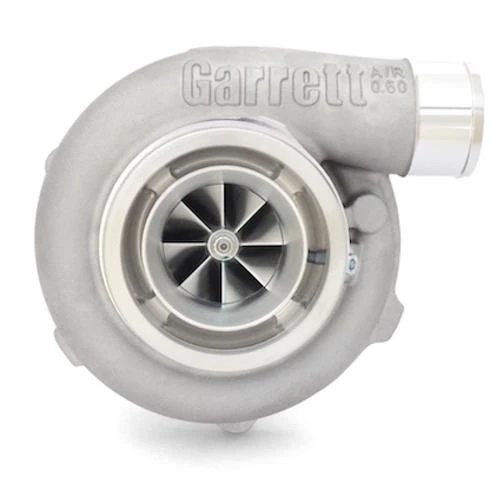

    GEN2 Garrett GTX3071R Turbo with .63 A/R T3 Turbine Housing w/ "T31" Narrow V-BAND exit GRT-TBO-767 - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    PRODUCT DESCRIPTION:

    Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Inlet, V-Band (T31 Narrow) Outlet, .63 A/R Turbine Housing (ATP-HSG-041). Advanced GEN2 billet compressor wheel capable of 650HP!


    PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

    •

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • V-Band "T31" Narrow Outlet Flange (for Downpipe): FLS-099
  • V-Band Outlet Clamp: CLA-012

    •  NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
