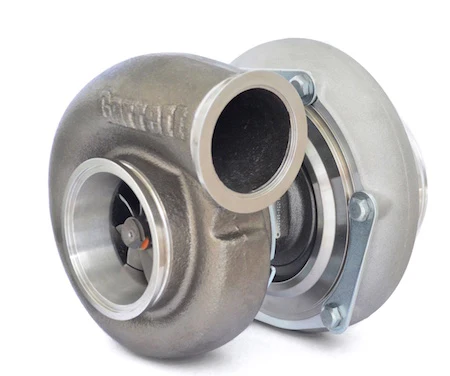

Garrett GTX3584RS (with Garrett V-Band Turbine Housing) GRT-TBO-586

PRODUCT DESCRIPTION:

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

PRODUCT FEATURES:

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel

Ultra high flow "RS" blade profile turbine wheel

Dual ball bearing CHRA rotating assembly

Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 67mm

Compressor Wheel Exducer: 84mm

Compressor Wheel Trim: 64

Compressor Housing: T04S Frame with a 4" inlet and 2.5" outlet w/ Anti-Surge

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

Turbine Housing: Various A/R Stainless Steel V-Band Inlet & V-Band Outlet

Includes turbine Housing Inlet clamp and outlet clamp (manifold and down-pipe flanges sold separately)



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

V-Band Inlet Clamp: (product code: CLA-047

V-Band Outlet Clamp: (product code: CLA-048

GT 3" V-Band Outlet Flange (for Downpipe): FLS-246

V-Band Inlet Flange (for Turbo Manifold): FLS-191



NOTE: Alternate coolant and oil fittings and flanges are available.

APPLICATION NOTES:

The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
