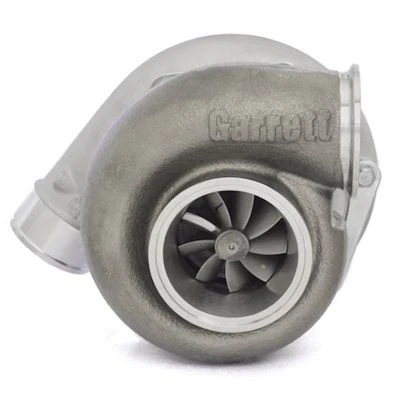

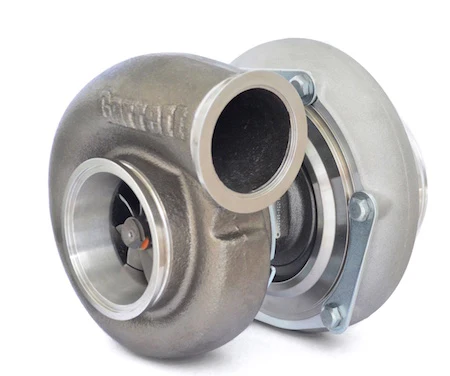

Garrett GTX3584RS Turbo w/ other Turbine Hsg Options - Vband Flanged Comp. Outlet GRT-TBO-567

PRODUCT DESCRIPTION:

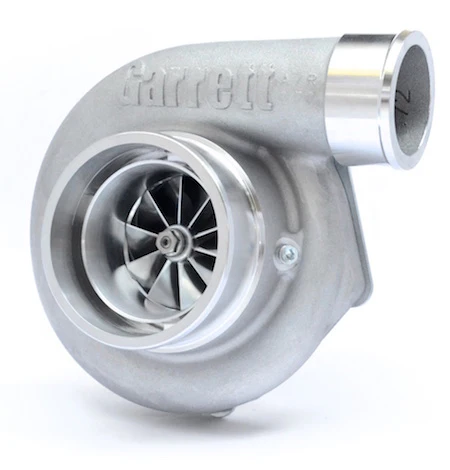

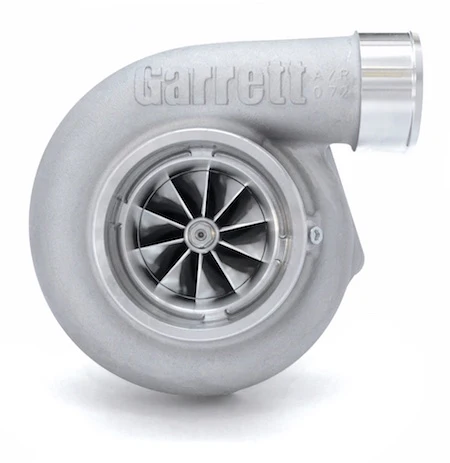

Garrett GTX3584RS dual ball bearing turbocharger with V-band flange compressor outlet housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** V-band flange compressor housing outlet version **


PRODUCT FEATURES:

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel

Ultra high flow "RS" blade profile turbine wheel

Dual ball bearing CHRA rotating assembly

Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 67mm

Compressor Wheel Exducer: 84mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.72

Compressor Housing Inlet: 4 inch diameter

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

Compressor Housing Outlet V-Band Flange (Charge Pipe Side): FLS-240

Compressor Housing Outlet V-Band Clamp: CLA-053

NOTE: Alternate coolant and oil fittings and flanges are available.

TURBINE HOUSING OPTIONS:

Garrett Stainless Steel V-Band Inlet/Outlet .83 A/R: HSG-340

Garrett Stainless Steel V-Band Inlet/Outlet 1.01 A/R: HSG-341

Garrett Stainless Steel V-Band Inlet/Outlet 1.21 A/R: HSG-342



 APPLICATION NOTES:

The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.
