Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88
HomeStore

Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88

Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88

Select Optional Selection:
Select Alternate Selection:
From $770.35

Original: $2,567.82

-70%
Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88—

$2,567.82

$770.35

The Story

Product Description:

Garrett G-Series G25-660 advanced small frame ball bearing turbocharger with a .92 A/R T3 inlet and v-band outlet turbine housing. 660HP from a small frame package!

    • Ultra High Flow G-Series Compressor Wheel
    • Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
    • Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN

Installation Hardware:

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • Compressor & Turbine Maps:





    Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88 - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

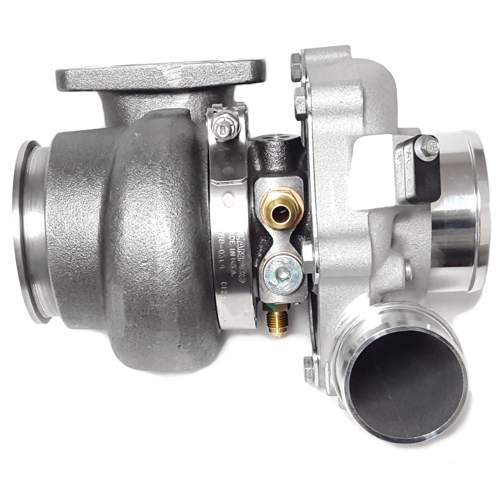

    Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88 - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

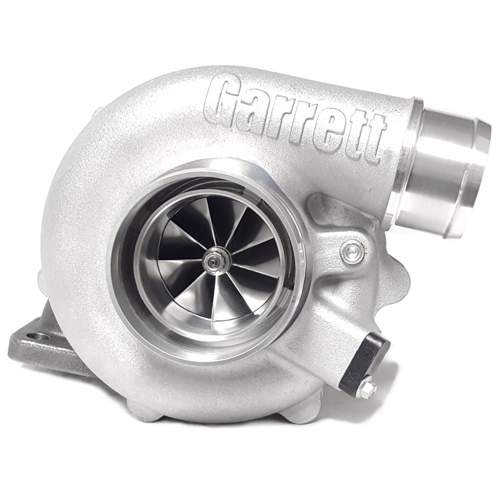

    Turbocharger, G-Series G25-660, .92 A/R T3 inlet, V-band outlet turbine housing GRT-TBO-K88 - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    Product Description:

    Garrett G-Series G25-660 advanced small frame ball bearing turbocharger with a .92 A/R T3 inlet and v-band outlet turbine housing. 660HP from a small frame package!

      • Ultra High Flow G-Series Compressor Wheel
      • Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
      • Includes -4AN oil feed fitting and -6AN coolant/water fittings
    Product Specifications:
    • Compressor Wheel Inducer: 54mm
    • Compressor Wheel Exducer: 67mm
    • Compressor Wheel Trim: 65
    • Compressor Housing Inlet: 3 Inch Diameter
    • Compressor Housing Outlet: 2 Inch Diameter
    • Compressor Housing A/R: .70
    • Turbine Wheel Inducer: 54mm
    • Turbine Wheel Exducer: 49mm
    • Turbine Wheel Trim: 84
    • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
    • Includes two Coolant Fittings to -6AN

    Installation Hardware:

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • Compressor & Turbine Maps:
