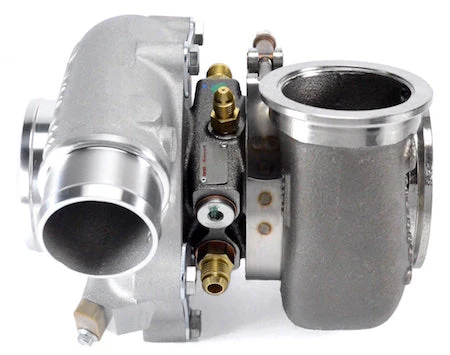

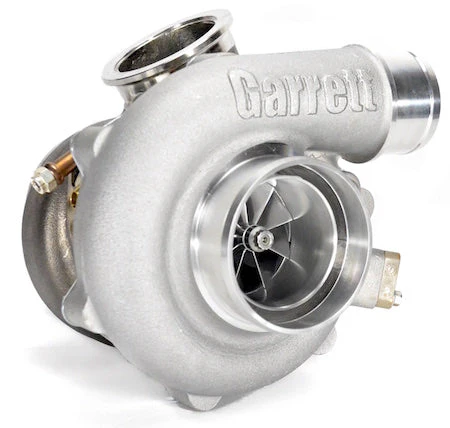

G25-550 STANDARD ROTATION & V-Band Turbine Hsg .72 A/R # 871389-5004S





DOES NOT COME WITH FLANGES



PRODUCT DESCRIPTION:
The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet & V-Band Outlet .72 A/R turbine housing (Garrett Part #871389-5004S). 550HP from a small frame package!

Ultra High Flow G-Series Compressor Wheel

Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating

Includes -4AN oil feed fitting and -6AN coolant/water fittings

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 48mm

Compressor Wheel Exducer: 60mm

Compressor Wheel Trim: 54

Compressor Housing Inlet: 3 Inch Diameter

Compressor Housing Outlet: 2 Inch Diameter

Compressor Housing A/R: .70

Turbine Wheel Inducer: 54mm

Turbine Wheel Exducer: 49mm

Turbine Wheel Trim: 84

Turbine Housing Inlet: 3 Inch O.D. V-Band

Turbine Housing Outlet: 3.55 inch O.D. V-Band

Includes Oil Feed (1mm) Restrictor Fitting to -4AN

Includes two Coolant Fittings to -6AN

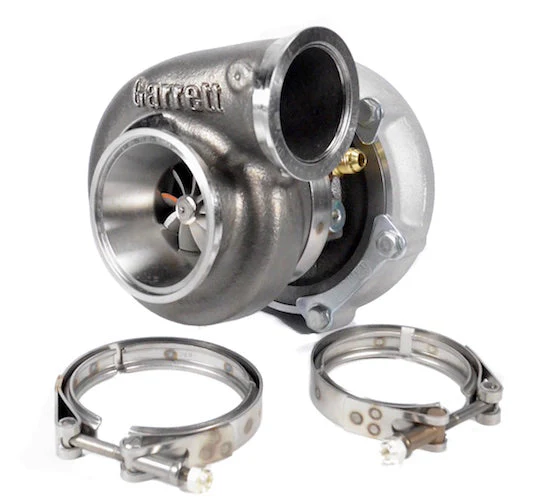

Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:

Inlet V-Band Flange (For Turbo Manifold): FLS-350

Inlet V-Band Clamp (For Turbo Manifold): CLA-265

Out V-Band Flange (For Down-pipe): FLS-351

Out V-Band Clamp (For Down-pipe): CLA-048

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

Oil drain fasteners: FST-034

Boost Pressure Port Fitting: FTG-198



 Speed Sensor Kit: ACS-032
