Product Description

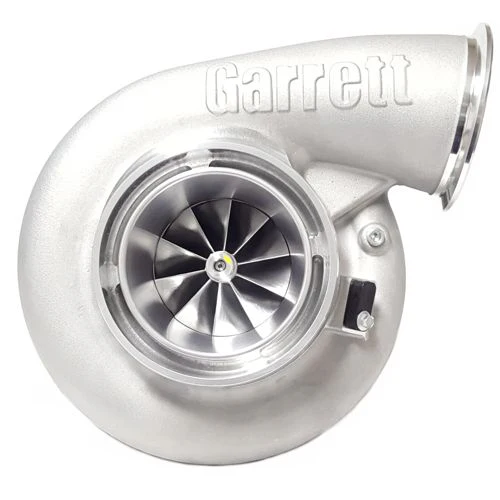

Garrett G50-1700-80MM/109 SUPERCORE ONLY - P/N: 880547-5027S w/ Compressor Housing w/ V-Band Outlet

Garrett G50 turbochargers are engineered for extreme horsepower applications. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G50 from its predecessor.

Turbine Stage:

The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 23% more (Compared to GTX Gen II, see graph below). G50 is offered with four stainless steel T6 open turbine housings in .96 A/R, 1.08 A/R, 1.23 A/R and 1.40 A/R.

Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction

Spool:

Up to +12% (estimated by flow, efficiency, and inertia)

Center Housing:

One-piece aluminum center housing reduces supercore weight. The center housing is air Cooled and retains the oil inlet and outlet specifications from previous GTX designs.

Compressor Stage:

Garrett G50 compressor stages are offered in

80mm | 109mm comp exducer | 88mm comp inducer | 120mm comp exducer with their own horsepower ratings indicated in the model name.

Features:

Supports nearly 1900 horsepower with amazing boost response depending on your inducer wheel choice
80mm | 109mm comp exducer | 88mm comp inducer | 120mm comp exducer
Spool: up to +12% (estimated by flow, efficiency, and inertia)
23% more turbine flow (compared to GTX) see graph below
One-piece aluminum center housing
Outline interchangeable with GTX Gen II turbos

INSTALLATION HARDWARE:

Oil feed flange: FLA-040

Oil feed gasket: GSK-011

Oil drain flange: FLA-035

Oil drain gasket: GSK-035

Compressor Housing Outlet Flange & Clamp Set: FLS-055

Speed Sensor Kit: ACS-032

V-Band Outlet Flange (for Downpipe): FLS-420

V-Band Outlet Clamp: CLA-022

NOTE: Alternate oil fittings and flanges are available.

Compressor & Turbine Maps:

G50 Models Comparison Chart:

Garrett G50 Supercores

Garrett G50-1900-88MM/120 SUPERCORE ONLY - P/N: 880547-5028S w/ Compressor Housing w/ V-Band Outlet GRT-TBO-R46

Garrett G50-1700-80MM/109 SUPERCORE ONLY - P/N: 880547-5027S w/ Compressor Housing w/ V-Band Outlet GRT-TBO-R45
