Product Description:

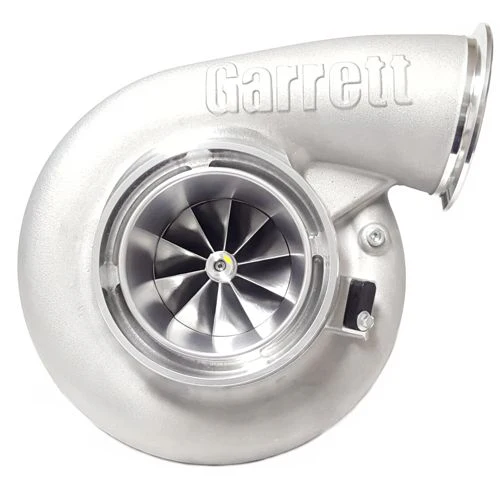

Garrett G-Series G45-1600 (80MM compressor inducer diameter) Supercore only (Turbo W/O turbine housing)capable of 1600HP!

Product Features:

Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
G Series compressor aero increases flow up to 16% (compared to GTX4508R)
80mm compressor inducer sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter (please check relevant rulebook)
Dual ceramic ball bearing with steel cages
G Series turbine aero increases flow 14% (compared to GTX4508R)
Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
Lightweight aluminum backplate
Fully machined speed sensor and pressure ports
Water fittings included with super core
Fully machined speed sensor and pressure ports
Water fittings included with super core

Product Specifications:

INSTALLATION HARDWARE:

Coolant - Water Options (Requires 2 units): *Please call for assistance*

Oil feed flange (-4 AN with built-in Restrictor): FLA-040

Oil feed gasket: GSK-011

Oil drain flange: FLA-009

Oil drain gasket: GSK-007

V-Band Compressor Outlet Flange/Clamp Set: FLS-055

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:

Garrett G45-1600
